320mm Bandsaw

FOOLAD ADJ SHARGH MACHINERY

320mm Bandsaw

Foolad Adj Shargh Company proudly introduces its products with exclusive designs for cutting machinery manufacturing.

Besides enjoying the options on similar band saws, 260-, 320- and 350-mm band saws devised and manufactured in three semi-automatic, fully-automatic, and full-option models have the following features.

1- Maximum separation of chips from the cutting blade by adjustable movable brush

2- Design and installation of an audio indicator on the front sliding part of the blade for effortless and precise adjustment of the blade tension

3- Quick and easy access to the machine’s hydraulic control parts when necessary

4- Predicting the possibility of cutting at an angle of 0-45 for semi-automatic models

5- A five-axis adjustable worktable, allowing steering and cutting of long parts

6- An inverter installed to access the speeds recommended in the cutting table accurately

7- A hydraulic jack installed to open and close the operator’s grip opening, designed explicitly for the full-option models

8- Feeder rollers equipped with double gears and chains to boost their strength and facilitate the movement of heavy parts

9- One-year warranty for the performance of all hydraulic and mechanical parts of the machine

10- Exquisite design and comfortable transportation are other features of Foolad Adj band saw machinery.

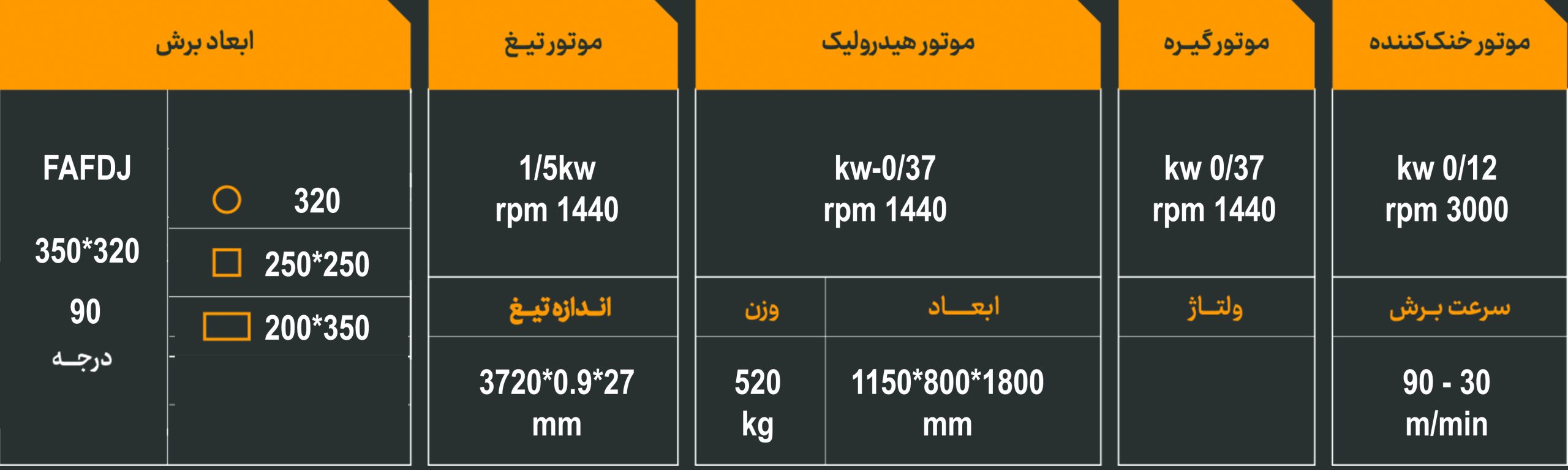

Cooling Motor

Hydraulic motor

Feeder motor

Main motor

Cutting dimensions

Cutting angle

Linear cutting speed

Machine dimensions

Machine weight

Blade size
